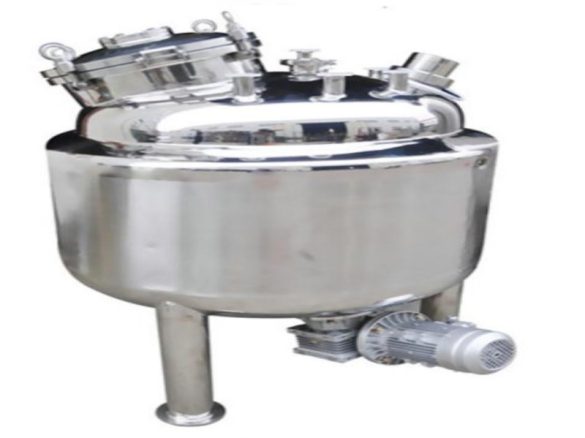

Aseptic Concentrated and Dilute Solution Preparation Tank

Overview

The aseptic concentrated and dilute solution preparation tank, also known as a preparation tank or batching tank, is a sanitary-grade stainless steel mixing and stirring vessel designed for mixing and reacting one or more materials according to process ratios. It is widely used in pharmaceutical, bioengineering, and other production processes, serving as a necessary equipment for preparing liquid medicines in the pharmaceutical industry, such as large-volume infusions and small injections.



The aseptic solution preparation tanks produced by our company adopt stretch-flanged dead-angle-free welding technology. The inner surface is finely polished, and the outer surface is treated with wire drawing or mirror finishing, meeting the GMP requirements for sanitary grade, easy cleaning, and easy disinfection.

Features

  1. Capable of in-line sterilization and in-line cleaning.
  2. Inner surface with mirror polishing, outer surface with matte treatment.
  3. Agitators adopt axial flow types, including three-leaf propeller type, paddle type, bottom magnetic stirring type, etc., with frequency conversion speed regulation.
  4. Dead-angle-free interior; sterile bottom valve at the tank bottom and sterile sampling valve on the tank body.
  5. Mechanical seal with a collection ring to prevent abrasion powder from falling into the tank.
  6. Liquid level gauge using hydrostatic level sensor.

Selection Parameters

Nominal Volume Operating Pressure (Mpa) Operating Temperature (℃) Stirring Speed (r/min) H (mm) H1 (mm) D (mm) D1 (mm) h (mm)
100 0.25 100 0-720 1750 450 Φ750 Φ550 300
200 0.25 100 0-720 1950 600 Φ850 Φ650 300
600 0.25 100 0-720 2500 1000 Φ1100 Φ900 350
1000 0.25 100 0-720 2850 1200 Φ1300 Φ1100 350
2000 0.25 100 0-720 3350 1500 Φ1500 Φ1300 350
3000 0.25 100 0-720 3700 1700 Φ1700 Φ1500 350
5000 0.25 100 0-720 4250 2000 Φ2000 Φ1800 400
10000 0.25 100 0-720 5000 2500 Φ2500 Φ2300 400
