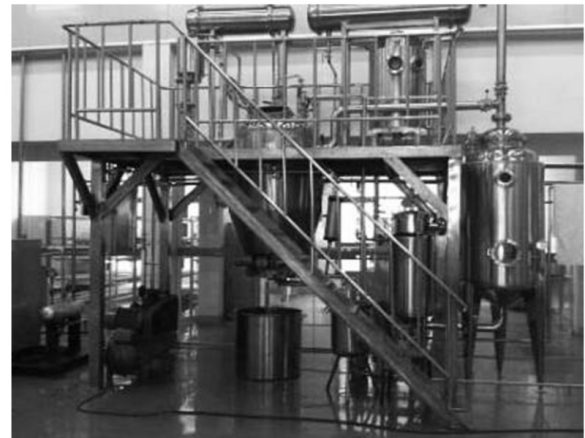

Our factory produces the Thermal Reflux Multifunctional Extraction-Concentration Tank, a new product developed through scientific calculations by integrating the best features of domestic extraction tanks. It adopts an extraction-concentration process combining an extraction tank with an external circulation concentrator, which improves the ointment yield of medicinal materials, reduces solvent consumption, and significantly saves energy. It is an ideal equipment for traditional Chinese medicine extraction and concentration.
| Item | Model | TQZ0.5 | TQZ1.0 | TQZ2.0 | TQZ3.0 | TQZ6.0 |
|---|---|---|---|---|---|---|
| Capacity of extraction tank m³ | 0.5 | 1.0 | 2.0 | 3.0 | 6.0 | |
| Working pressure tank MPa | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | |
| Working pressure jacket MPa | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | |
| Working temperature in jacket 0C | 143 | 143 | 143 | 143 | 143 | |
| Heating area M2 | 3.8 | 3.8 | 5.6 | 7.6 | 9.5 | |
| Condensing area M2 | 5 | 8.3 | 11.5 | 14.5 | 25 | |
| Cooling area M2 | / | / | / | 1 | 1 | |
| Working pressure MPa | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | |
| Working temperature 0C | 138 | 138 | 138 | 138 | 138 | |
| Heating area M2 | 3 | 6 | 12 | 16 | 22 | |
| Condensing area M2 | 7 | 14 | 25 | 36 | 44 | |
| Rated evaporacity (clear water) kg/h | 150 | 350 | 700 | 1000 | 1500 |
