1. Product Overview & Core Advantages

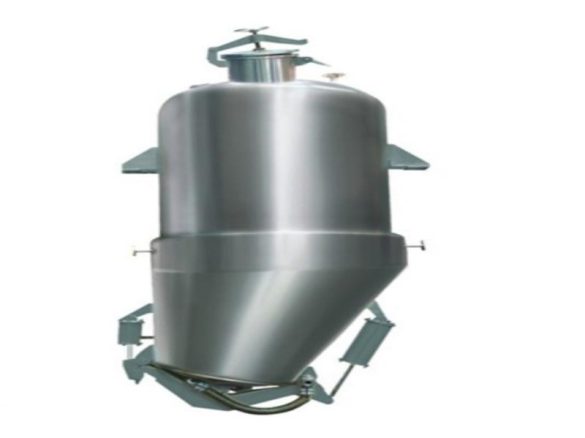

The multi-function oblique cone extraction tank is a specialized variant of the standard cone extraction tank, distinguished by its inclined cone-shaped structure. This unique design delivers four core benefits: it ensures sufficient extraction, boosts extraction efficiency, enhances heat exchange effectiveness, and simplifies operational workflows.
Compared to regular straight-tube or standard cone extraction tanks, the oblique cone design brings manufacturing challenges. Specifically, its production process is more complex, requiring more time and generating slightly more waste material. However, beyond this structural difference, all other design specifications align with our standard multi-function regular cone extraction tank series, ensuring consistency in quality and performance.
Our company exclusively uses stainless steel for all parts in contact with materials. This choice guarantees excellent corrosion resistance, fully complies with GMP standards, and ensures non-toxic, non-shedding performance for long-term use.
2. Core Structural Composition
2.1 Main Body Components
The main body integrates multiple functional components, including an inner cylinder, jacket, insulation layer, lugs, driving cylinder, optimized slag discharge door, filter screen, nozzles, feeding port, spotlight, sight glass, and liquid level gauge. All parts are precision-assembled to meet strict process requirements.
2.2 Key Auxiliary Components
- Demister: Installed at the evaporation port, it features an anti-blockage and self-cleaning structure. Its primary role is to eliminate foam generated during cooking and prevent material residues from entering the heat exchanger.
- Condenser: Its core function is to condense the evaporated gas from the tank into a liquid state, facilitating subsequent separation processes.
- Cooler: It cools the condensed liquid to a low temperature, optimizing the conditions for subsequent oil-water separation.
- Oil-Water Separator: It effectively separates aromatic substances or essential oil components from materials, and can distinguish between heavy oil and light oil fractions.
3. Design & Manufacturing Expertise
Our company has accumulated extensive experience across the entire product lifecycle, from small-scale tests and pilot tests to the design, manufacturing, and installation of large-scale production units.
As a result, we have developed a standardized series of oblique cone extraction tanks with various models. These products boast a reasonable structure, safe and scientific design, and user-friendly operation.
4. Optimized Slag Discharge Door Design
The optimally designed slag discharge door of the oblique cone extraction tank is a key highlight. It offers reliable and durable sealing, with features including safety, reliability, easy operation, convenient opening, and excellent airtightness.
Most importantly, it realizes a self-locking function in case of power failure or gas supply failure, ensuring operational safety during the extraction process.
5. Material & Performance Advantages
Beyond meeting GMP standards, the stainless steel construction ensures the extraction tank is non-toxic and non-shedding. It also delivers outstanding corrosion resistance.
These properties not only guarantee the quality of traditional Chinese medicine products, food, and beverages, but also extend the service life of the equipment, making it a cost-effective and reliable choice for long-term production use.
