1. Overview and Basic Characteristics

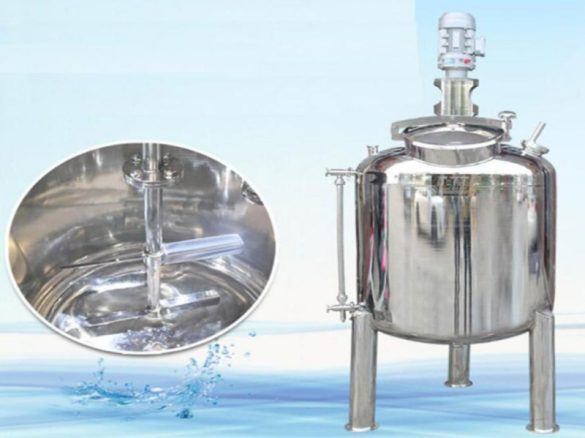

The single-layer liquid preparation tank shares the same working principle as single-layer stirring tanks and single-layer reaction kettles; we also call it a single-layer formulation tank or single-layer blending tank. It is a mixing and stirring equipment that blends, stirs, reacts, and stores one or more materials according to process ratios. Since the single-layer liquid preparation tank does not have a jacket or thermal insulation system, we design it with a single-layer stainless-steel structure that includes a stirring function. Our company manufactures single-layer liquid preparation tanks as modern standard equipment for the pharmaceutical and food industries; we fabricate and accept them in accordance with the hygienic standards of the pharmaceutical industry.
2. Application Fields
Currently, we mainly apply single-layer liquid preparation tanks in the dairy, chemical, food, beverage, pharmaceutical, and medical industries. They see particularly extensive use in the pharmaceutical sector.
3. Core Components
The single-layer liquid preparation tank comprises several key components, including a cylinder, upper and lower heads, agitators (such as anchor type, paddle type, turbine type, and screw type), transmission devices (motor reducers and frequency converters), shaft sealing devices (mechanical seals, oil seals, and packing seals), and supports (platforms, legs, and mobile casters).
4. Customizable Configurations
According to customer requirements, we can equip the single-layer liquid preparation tank with a 360° universal CIP cleaning device, level gauges (such as magnetic flap level gauges, hydrostatic level gauges, and float level gauges), manholes (or hand holes), breathers (including fire-proof, explosion-proof, and sterile types), sight glass spotlights, liquid inlets, liquid outlets, and drain outlets. We select or configure valves, instruments, and meters matched with nozzles according to specific process needs.
5. Electrical Control System
The electrical control system of the single-layer liquid preparation tank mainly controls several key functions: the start/stop of motor reducers or frequency conversion speed regulation, the on/off of spotlights, liquid level measurement, pressure display, weighing control, and flow display and control.
