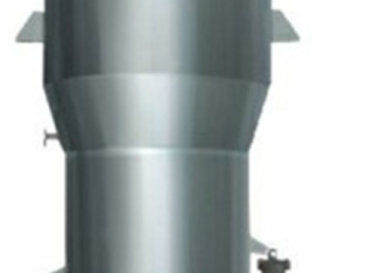

It supports a wide range of processes, including atmospheric pressure, slight pressure, water decoction, immersion, warm immersion, hot reflux, forced circulation percolation, aromatic oil recovery, and organic solvent recovery.
Due to its flexible design, it is widely used in traditional Chinese medicine, food, chemical engineering, and cosmetics industries.

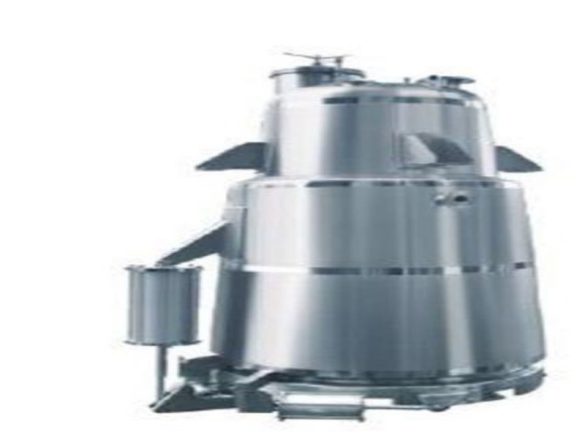

This inverted cone shape brings significant benefits; it improves slag discharge efficiency and delivers excellent heating performance.
However, this structure also has drawbacks. It is more difficult to manufacture, and the production process generates more material waste.
Despite these challenges, it remains a popular choice. It works especially well for the extraction and purification of materials with high solid content.
We manufacture the tank body using high-quality 304 or 316L stainless steel.
We also polish the inner surface of the equipment to ensure cleanliness, eliminate dead corners, and prevent residue or adsorption.
In addition, we calculate the wall thickness based on working temperature, pressure, and material corrosion.
As a result, the tank offers strong pressure resistance, a smooth surface, and high extraction efficiency.
After the main cylinder closes the door, two horizontal cylinders push the rotating lock ring into place.
The special lock ring structure lifts the door and completes the locking action securely.
This design makes the door safe, reliable, easy to operate, and highly airtight.
Most importantly, it provides a self-locking function even during power or air failure.
Our customized slag discharge door has zero displacement, no leakage, no liquid loss, and outstanding overall safety.
| Specification | TQ – 0.5 | TQ – 1.0 | TQ – 2.0 | TQ – 3.0 | TQ – 4.0 | TQ – 6.0 | TQ – 8.0 | TQ – 10 |
|---|---|---|---|---|---|---|---|---|
| Effective Volume | 500L | 1000L | 2000L | 3000L | 4000L | 6000L | 8000L | 10000L |
| Designed Pressure Inside Tank | 0.09Mpa (for all) | |||||||
| Designed Pressure of Jacket | 0.3Mpa (for all) | |||||||
| Compressed Air Pressure | 0.6 ~ 0.7Mpa (for all) | |||||||
| Diameter of Feeding Port (mm) | 400 | 400 | 500 | 500 | ||||
| Heating Area (m²) | 2.4 | 3.0 | 4.7 | 6.5 | 8 | 11 | 12 | 15 |
| Condensation Area (m²) | 3 | 4 | 6 | 8 | 12 | 15 | 20 | 30 |
| Cooling Area (m²) | 1 | 1.5 | 1.5 | 2 | 2 | 3 | ||
| Diameter of Slag Discharge Door (mm) | 600 | 800 | 800 | 1000 | 1000 | 1200 | 1400 | 1500 |
| Heating Steam Pipe Port | 20 | 25 | 32 | 40 | 40 | 50 | 50 | 65 |
| Exhaust Pipe Port | 50 | 65 | 80 | 100 | 125 | 150 | 150 | 150 |
| Cooling Water Port | 32 | 32 | 40 | 50 | 50 | 50 | 65 | 70 |
