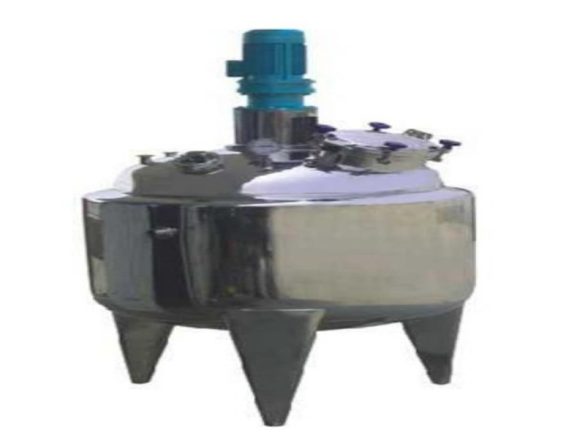

Electric Heating Ingredients Tank

Electric heating ingredient tanks are used in food, dairy, pharmaceutical, daily chemical, beverage, oil, chemical, pigment and other industries for heating, mixing and blending or sterilization treatment, and can adopt a fully enclosed structure as required by the process. The electric heating ingredient tank is of top-opening and bottom-inclined three-layer structure, with functions of heatable automatic temperature control, heat preservation and stirring. This equipment has the advantages of energy saving, noise reduction, acid resistance, alkali resistance, corrosion resistance, strong productivity, convenient cleaning and operation, fast heat transfer, large adaptability to temperature difference, convenient cleaning, etc. The structure and characteristics of the electric heating ingredient tank: top-opening and bottom-inclined three-layer structure, with functions of heatable automatic temperature control, heat preservation and stirring, fast heat transfer, large adaptability to temperature difference, convenient cleaning, etc. The application scope of the electric heating ingredient tank: suitable for heating, mixing and blending or sterilization treatment in food (dairy) products, pharmaceutical, daily chemical, beverage, oil, chemical, pigment and other industries, especially suitable for small and medium-sized trials in units and scientific research institutions without steam heat sources, and can adopt a fully enclosed structure as required by the process.

1. Volume: 50L, 100L, 200L, 300L, 500L, 600L, 1000L～5000L.
2. Heating System: Electric heating rods are inserted into the jacket, which is filled with heat-conducting oil or water as the heating medium to generate thermal energy for heating the materials in the tank.
3. Material Heating Temperature: ≤350℃; Material heating time: 20min～90min (adjustable according to process requirements).
4. Temperature Control: Temperature is measured by thermocouples and controlled by a temperature controller for precise monitoring.
5. Tank Body: The inner surface is mirror-polished with a roughness of Ra≤0.4μm.
6. Upper Cover: Two detachable movable covers for easy cleaning, with both inner and outer surfaces mirror-polished (Ra≤0.4μm).
7. Inner Tank Bottom: Inclined at 5° toward the discharge port to ensure complete material discharge without residue.
8. Outer Shell Surface Treatment: Mirror polishing, 2B original matte finish, or 2B frosted matte finish.
9. Stirring Device: Top-center stirring; the output shaft of the reducer is connected to the stirring paddle shaft via a loose sleeve for easy disassembly and cleaning.
10. Stirring Speed: 25～80r/min (fixed speed); Stirring paddle types: frame type, anchor type, paddle type, turbine type, etc. (selected per process requirements).
11. Materials: Inner tank made of SUS304 or SUS316L; jacket and outer protective shell made of SUS304.
12. Process Openings and Welds: All inlet/outlet nozzles and welds on the inner tank adopt flanging technology with arc transition, featuring smooth surfaces for easy cleaning, no dead corners, and aesthetic appearance.
