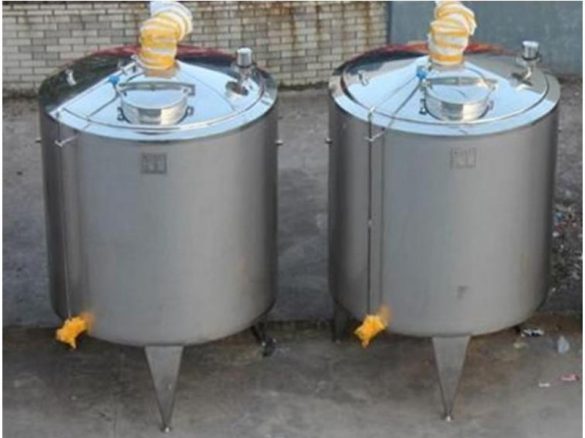

Yogurt Fermentation Tank

Overview

The yogurt fermentation tank is a critical equipment in yogurt production, featuring functions such as sterilization, cooling, temperature holding, and agitation. It is used to inoculate milk cooled to 40–45°C with Lactobacillus bulgaricus and Streptococcus thermophilus as starter cultures, which are then kept at 43°C for fermentation. Fermentation at 43°C ensures numerical balance between the two strains, maintains a beneficial symbiotic relationship, shortens fermentation time, and improves production efficiency.

Structural Composition

The yogurt fermentation tank consists of:



  • Stainless steel cylinder and upper/lower heads
  • Jackets or coils (for heating and cooling circulation)
  • Stainless steel agitators (anchor type, paddle type, turbine type, dispersion disc, etc.)
  • Drive devices (motor reducers or pneumatic motors)
  • Shaft sealing devices (mechanical seals, skeleton oil seals, packing)
  • Supports (platforms, legs, skirt supports, mobile casters)
  • Thermal insulation media and outer cladding

Accessories

Accessories can be installed according to customer requirements, including:



  • CIP cleaning device
  • Level gauge (material level meter)
  • Manhole (hand hole)
  • Breather (flame arrester & explosion-proof)
  • Sight glass with spotlight
  • Temperature sensor
  • Pressure gauge
  • Vacuum gauge
  • Bottom discharge valve (downward type)
  • Ball valve
  • Liquid inlet/outlet
  • Drain outlet

Electrical & Control Components

  • Motor-reducer with start-stop function or variable frequency speed control
  • Digital temperature display and control device
  • Electrical control equipment involved in the above accessories

Optional Control Systems

  • LCD touchscreen
  • PLC controller

Technical Parameters

Nominal Volume 100L 300L 500L 1000L 2000L 3000L 5000L 10000L
Agitation Power (kW)
Rotation Speed (r/m) Fixed speed or VFD control
Agitation Type Customized based on material properties
Working Pressure (MPa) Designed per process requirements
Working Temperature (°C) 0–121°C
Jacket Heating/Cooling Media Steam/cooling water/other refrigerants (e.g., ethylene glycol, silicone oil)
Insulation Material Polyurethane/rock wool/aluminum silicate
Nozzle Configuration Customizable under applicable conditions
Tank Material SUS304/316L stainless steel
