Vacuum Concentration Pot

Chat Online Leave Message

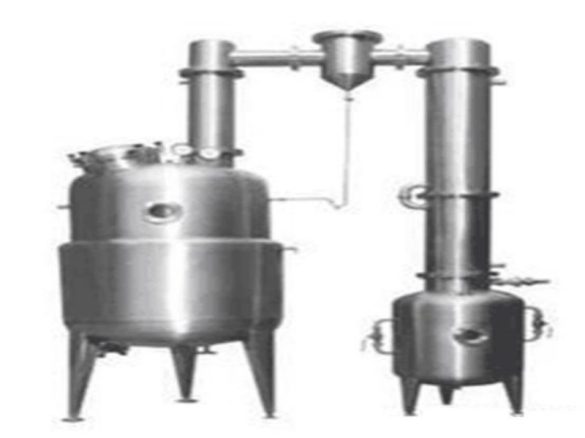

Main Structural Components

Due to different technical requirements and varying prices from manufacturers, it is essential to clarify the parameter requirements of the vacuum concentration pot when purchasing. This ensures accurate commercial quotations, technical design, and manufacturing. The main components of the vacuum concentration pot include:



  1. Operation console
  2. Manhole
  3. Air release device
  4. Sight hole
  5. Pot body
  6. Light hole
  7. Separator
  8. Hydraulic ejector
  9. Support frame
  10. Water tank
  11. Instrument box
  12. Long-handle valve
  13. Check valve
  14. Multistage centrifugal water pump

Technical Specifications

Item 300 kg/h Model 700 kg/h Model 1000 kg/h Model
Production Capacity (Water Evaporation) 300 kg/h 700 kg/h 1000 kg/h
Vacuum Degree in Pot ≥620 mmHg ≥620 mmHg ≥620 mmHg
Heating Coil Pressure (Gauge) 0.02–0.15 MPa 0.02–0.15 MPa 0.02–0.15 MPa
Heating Area 6 m² 6.7 m² 9.5 m²
Inner Diameter of Pot Body 900 mm 1000 mm 1100 mm
Steam Consumption ~350 kg/h ~1135 kg/h ~1350 kg/h
Cooling Water Consumption When water temperature <20℃: 18 T/h 36 T/h 42 T/h
Water Pump Type 50TSW-4 centrifugal pump 75TSW-4 centrifugal pump 75TSW-5 centrifugal pump
Water Pump Motor Power JO2-42-4 5.5 KW JO2-52-4 10 KW JO2-52-4 10 KW
Overall Dimensions (L×W×H) 3000×2800×3200 mm 3500×3200×4100 mm 3600×3400×4500 mm
Equipment Weight 995 kg ~2.5 tons (full set) 3800 kg
