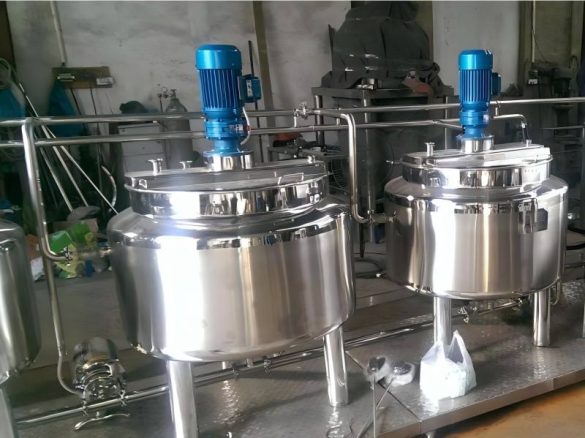

Sugar Melting Tank

WhatsApp/WeChat: +8617355715967
E-mail: [email protected]

Overview

1. Product Overview and Core Structure

Our company develops and manufactures the sugar melting tank, also known as a sugar melting kettle—a newly designed melting and heating device.

We construct the kettle body with a cylindrical stainless steel inner cylinder and head, which forms a heat transfer interlayer. We wrap the outside with polished stainless steel, giving it an aesthetically pleasing appearance.

Operators can achieve heating and melting by placing the substances to be melted and cold water inside the tank, then introducing steam into the interlayer.

We equip the pipeline connected to the interlayer with a pressure gauge and a safety valve to ensure safe operation.

The sugar dissolving system consists of a material-liquid mixing pump, hot/cold tanks, a dual filter, a frame, and connecting pipes.

2. Purchasing Notes

Manufacturers offer different prices due to varying technical requirements. Therefore, buyers must clarify their parameter requirements when purchasing.

This clarity ensures accurate commercial quotations, technical design, and manufacturing.

3. Application Scenarios

The sugar melting tank is primarily used for dissolving granulated sugar. It also suits the quantitative dissolution of powdered or granular materials.

These materials include milk powder, coconut essence, starch, and other food additives. The system performs three functions simultaneously: dissolution, heating (or cooling), and filtration.

This makes it an essential process equipment for food and beverage production.

4. Core Advantages

① Fast speed and high efficiency: It excels in dissolution, heating (or cooling), and filtration, saving time for production.

② Safe operation: We equip the interlayer pipeline with a pressure gauge and a safety valve to guarantee safe operation.

③ Elegant appearance: We wrap the outer surface with polished stainless steel, giving it an elegant and aesthetic look.

Technical Specifications

Item	Parameter Details
Volume	300L～10,000L series specifications
Inner Wall of Tank	Mirror polishing on the inner surface, roughness Ra＜0.4μm
Top Cover	Two-piece hinge design for easy cleaning; mirror polishing on both inner and outer surfaces (Ra＜0.4μm)
Tank Bottom	5° inclined bottom to ensure complete drainage without residue
Jacket Type	Full jacket (with inner spiral guide plate), half-pipe coil jacket, honeycomb jacket
Insulation Material	Filled with pearl cotton, rock wool or polyurethane foam
Shell Surface Treatment	Mirror polishing, 2B matte, 2B sandblasted matte
Stirring Device	Top center stirring; the output shaft of the reducer is connected to the stirring shaft with an elastic coupling for easy disassembly, assembly and cleaning
Stirring Speed	10～120r/min (fixed speed); Impeller type: frame type, anchor type, paddle type
Foot Type	Round tube design
Equipment Configuration	Thermometer (digital/dial), material inlet and outlet, spare interface, heating medium inlet and outlet, cooling medium inlet and outlet
Material	Inner tank: SUS304 or SUS316L; Jacket and shell: SUS304
Connection Design	All process nozzles and welds of the inner tank adopt flange arc transition, ensuring smooth cleaning without dead corners and an attractive appearance
