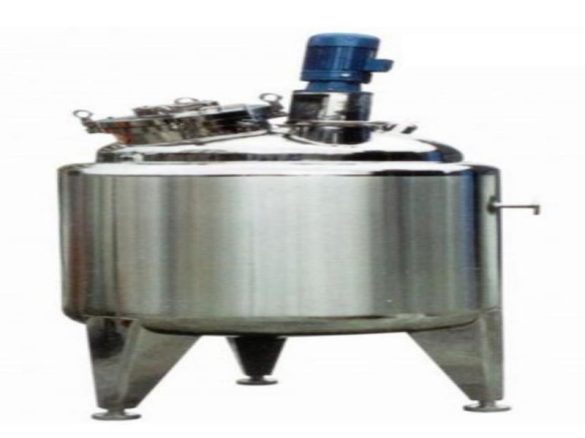

Mixing Tank

Overview

Our company designs and manufactures fully automatic stainless steel mixing tanks and liquid medicine mixing tanks, which can achieve automated operations such as automatic feeding and metering, temperature detection, automatic stirring control, aseptic filtration, filling, CIP (Clean-In-Place) cleaning, etc. Due to different technical requirements, prices from manufacturers vary. Therefore, when purchasing mixing tanks, it is essential to clarify the parameter requirements of the tanks to enable the provision of accurate commercial quotations, technical designs, and manufacturing solutions.

Customizable Standalone Stainless

We offer customizable standalone stainless steel mixing tanks (also known as mixing vats or blending vats). Due to varying technical requirements, prices from different manufacturers may differ significantly. Therefore, when purchasing mixing tanks, it is crucial to specify the parameter requirements clearly to ensure accurate commercial quotations, technical designs, and manufacturing solutions.

Advantages and Applications

Mixing tanks feature energy efficiency, corrosion resistance, high production capacity, easy cleaning, and simple structure. They are primarily used for uniform stirring of dairy products, sugar, other ingredients, and various pharmaceuticals after formulation, serving as indispensable equipment in dairy, beverage, and pharmaceutical factories.
Manufactured from SUS304 or 316 stainless steel, these tanks comply with GMP production standards.

Technical Parameters

Nominal Volume (L) 300 500 600 1000 1500
Overall Dimensions D×H×H1 (mm) 440×440×1200 900×900×1550 1000×1000×1650 1150×1200×1940 1350×1200×1940
Stirring Power (Kw) 0.55 0.55 0.75 0.75 1.1
Stirring Speed (r/min) 36 36 36 36 36
Weight (Kg) 180 200 250 300 400
