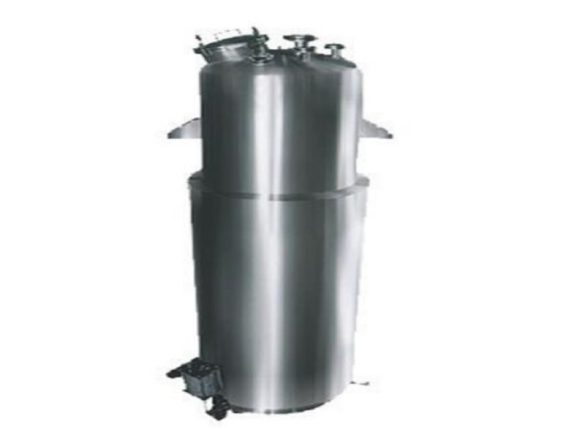

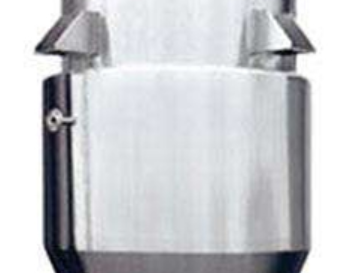

Straight-Tube Extraction Tank

Chat Online Leave Message

Definition

The so – called straight – tube extraction tank means that the entire extraction tank is of a straight – tube type and adopts an up – and – down through – path design. This kind of extraction tank has a simple design, is convenient to manufacture, saves costs, and has complete functions. The straight – tube extraction tank can be used in combination with other auxiliary equipment, such as a demister, a condenser, a double – connection filter, an oil – water separator, etc. The oil – water separator is mainly used for oil – receiving operations for alcohol extraction. The whole set of equipment is completed in a completely sealed and recyclable system, and at the same time, the organic solvent is recovered from the waste liquid. The multi – function extraction equipment has the characteristics of short extraction time, high production efficiency, low energy consumption, fast heating – up time, wide application range, simple operation, safety and reliability.

Application Range

Application Range Application Type
Biopharmaceuticals Extraction, percolation, dissolution, and purification of effective components of traditional Chinese medicine
Food Industry Extraction of hops; purification of vegetable and animal oils; extraction of plant pigments; extraction of plant functional substances; extraction of flavors and fragrances
Cosmetics Industry Extraction, purification, and extraction of cosmetics raw materials
Chemical Industry Recovery of reaction raw materials; dissolution and purification of organic solvents

Structural Features

  1. The slag discharge door of the straight – tube extraction tank adopts a proprietary patented design. After the main cylinder closes the slag discharge door, two horizontal cylinders push the rotating lock ring. The unique structure of the lock ring can make the slag discharge door rise and lock. The slag discharge door has the characteristics of safety, reliability, easy operation, easy opening, and good airtightness. It can realize the self – locking function in case of power failure and gas failure. The slag discharge door designed by our company does not shift, does not leak, and is self – locking safely.
  2. The demister designed by our company adopts a detachable baffled plate type, which is convenient for cleaning.
  3. The oil – water separator, an auxiliary equipment of the extraction tank, is easy to clean, and can effectively separate the oil and water in the cooled liquid medicine, and has a protection structure to prevent the liquid medicine from flowing into the recovered volatile oil.
    It meets the requirements of GMP standards.

Specification Selection

Specification TQ – 0.5 TQ – 1.0 TQ – 2.0 TQ – 3.0 TQ – 4.0 TQ – 6.0 TQ – 8.0 TQ – 10
Effective Volume 500L 1000L 2000L 3000L 4000L 6000L 8000L 10000L
Designed Pressure Inside the Tank 0.09Mpa
Designed Pressure of the Jacket 0.3Mpa
Compressed Air Pressure 0.6 – 0.7Mpa



Diameter of Feeding Port (mm) 400 400 500 500
Heating Area (m²) 2.4 3.0 4.7 6.5 8 11 12 15
Condensation Area (m²) 3 4 6 8 12 15 20 30
Cooling Area (m²) 1 1.5 1.5 2 2 3
Diameter of Slag Discharge Door (mm) 600 800 800 1000 1000 1200 1400 1500
Heating Steam Pipe Port 20 25 32 40 40 50 50 65
Exhaust Pipe Port 50 65 80 100 125 150 150 150
Cooling Water Port 32 32 40 50 50 50 65 70
